Discover the Powerful New Features in CABINET VISION 2024.1
Planit Canada is excited to introduce the latest updates in CABINET VISION 2024.1, designed to streamline workflows, enhance customization, and boost productivity for designers, engineers, and CNC operators. In this blog post, we will explore the standout features from each of the four new videos, showcasing the general features, room level enhancements, 2D CAD updates, and assembly improvements.
Don’t forget to read our “Expert Tips for Migrating Your CABINET VISION Software” to ensure a smooth transition to version 2024.1.
General Features in CABINET VISION 2024.1
JavaScript User-Created Standards
One of the most significant enhancements in CABINET VISION 2024.1 is the ability to use JavaScript for User Created Standards (UCS). This update opens up customization to a broader range of programmers by utilizing a mainstream, well-documented programming language. Users can now:
- Create scripts to customize software behavior with JavaScript.
- Debug code using the Visual Studio Code tool.
- Access a vast repository of reusable code online.
- Convert standard UCS into JavaScript with a new conversion tool.
Show Part Names and Sizes on Patterns
CNC operators will appreciate the new feature that displays part names and sizes directly on optimization and nest pattern reports. This update simplifies part identification and reduces errors by eliminating the need to cross-reference part drawings with a part list.
Watch the full video on General Features in CABINET VISION 2024.1.
Room Level Features in CABINET VISION 2024.1

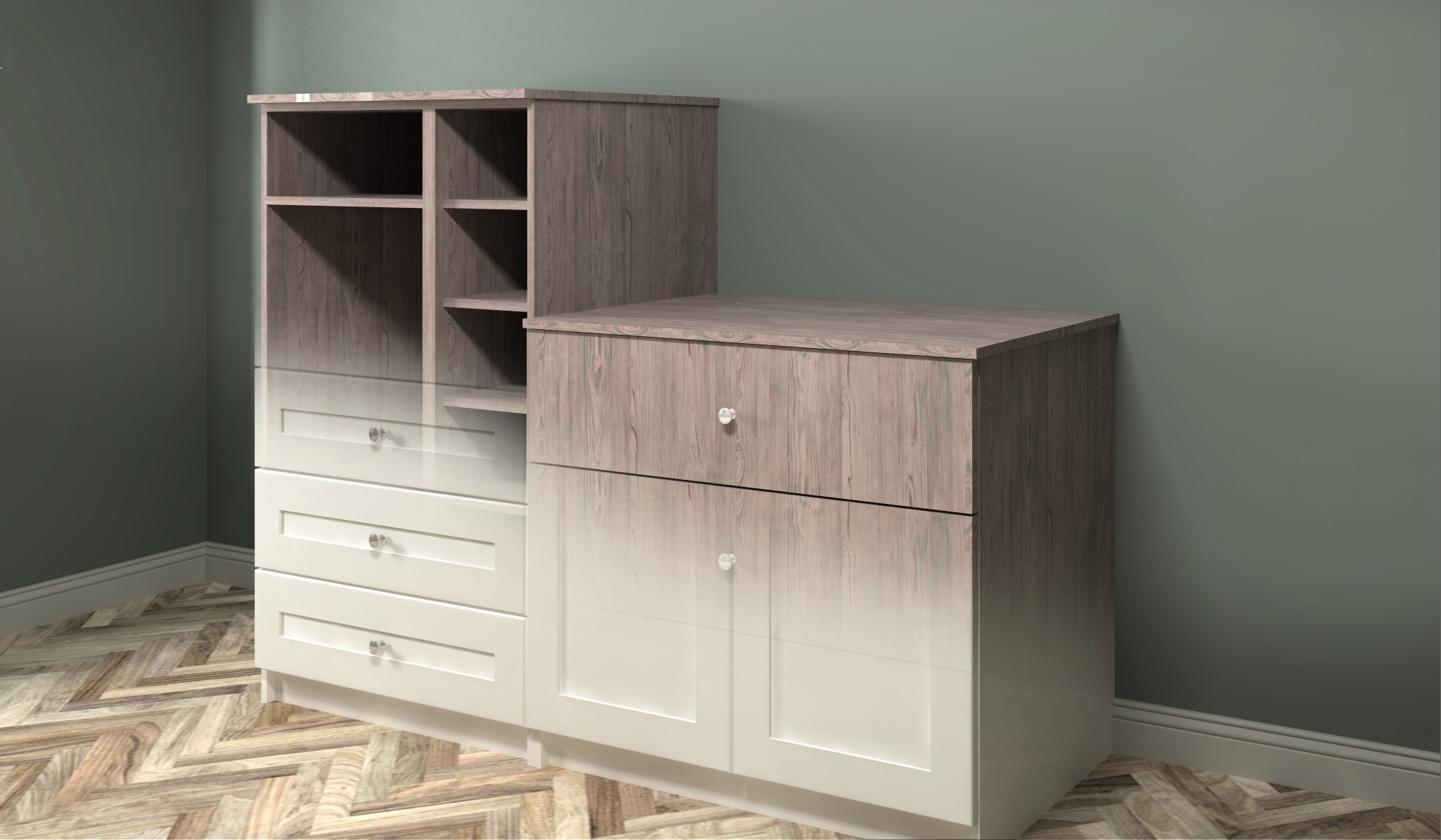

Replace Assembly Feature
Designers and engineers will save valuable time with the new Replace Assembly feature. This addition allows for quick and easy changes to assemblies within a layout, accommodating last-minute design changes from clients or design revisions.
Watch the full video on Room Level Features in CABINET VISION 2024.1.
2D CAD Features in CABINET VISION 2024.1
Quick Hatch
The Quick Hatch option is a time-saver for 2D CAD users, allowing them to fill enclosed areas with their chosen Hatch pattern with a single click. This feature enhances efficiency in creating detailed and precise drawings.

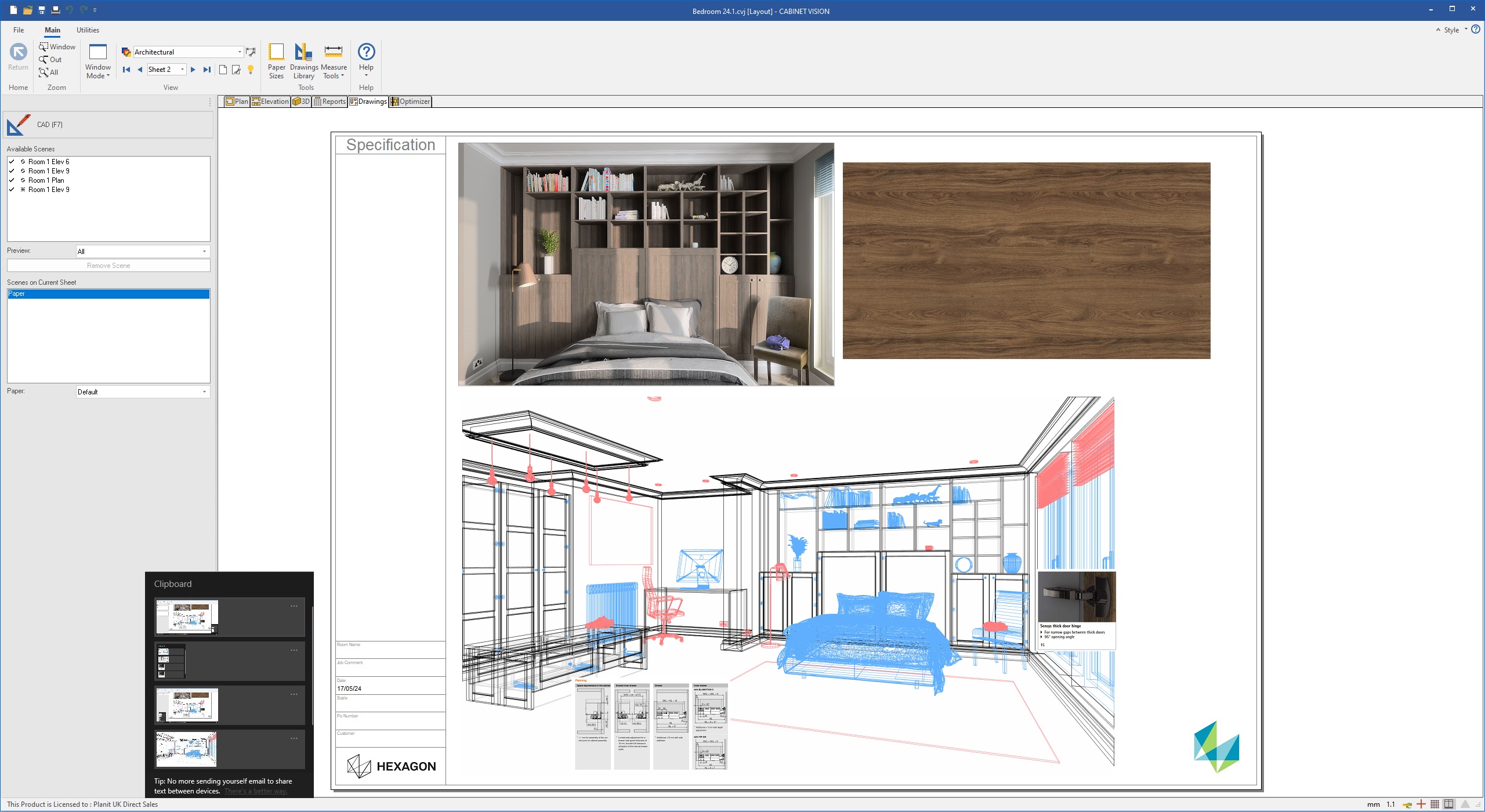

Paste Images from Windows Clipboard
CABINET VISION 2024.1 eliminates the need for third-party image editors by allowing users to paste images directly from the Windows Clipboard into CAD. This functionality is perfect for including website specifications and captures in submittals quickly and easily.
Watch the full video on 2D CAD Features in CABINET VISION 2024.1.
Assemblies Features in CABINET VISION 2024.1
Measure Tool in Section Editor
The Section Editor, a highly versatile area of CABINET VISION, is now even more powerful with the addition of a Measure tool. This feature allows users to take measurements directly within the editor, eliminating the need to switch views and enhancing workflow efficiency.

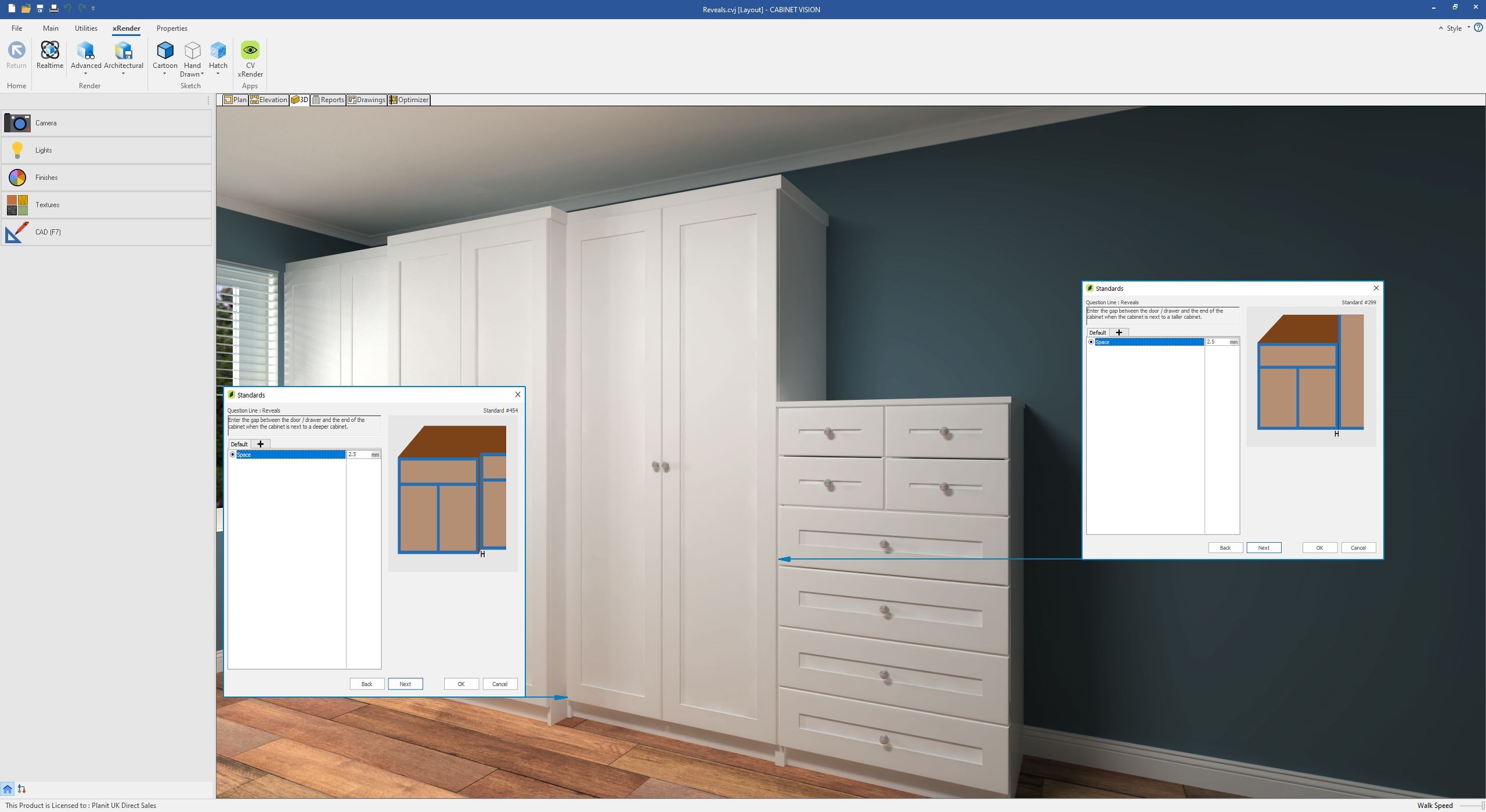

Reveals Next to Taller and Deeper Adjacent Assemblies
This update allows users to establish door reveals on an assembly adjacent to a deeper or taller cabinet using a construction method. It simplifies the process and reduces errors caused by manual overrides.
Watch the full video on Assemblies Features in CABINET VISION 2024.1.
CABINET VISION 2024.1 brings a host of powerful new features designed to enhance customization, improve efficiency, and reduce errors across various stages of design and production. We encourage all users to explore these updates and leverage them to streamline their workflows and improve productivity.
If you have any questions or would like a demonstration of the new features, feel free to contact us.
Looking for other solutions enhance your manufacturing processes and boost productivity? In addition to CABINET VISION, Planit Canada offers a range of cabinet shop software programs including ALPHACAM, a leading CAD/CAM software for woodworking, and WEB-CAB, a production assistant software. Get in touch with one of out expert to learn more and see how these solutions can benefit your business.
